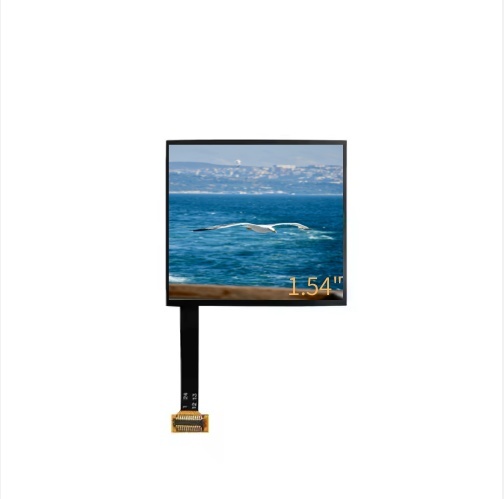

300nits TFT LCD Display 1.54 Inch SPI LCD Display 320x320 Resolution With SPI Interface

Model Number : RHY015

Certification : ISO9001

Place of Origin : China

MOQ : 1000

Price : US $ 4.9

Payment Terms : T/T

Delivery Time : 31-35 work days

Packaging Details : 8.2*8.4*5.2(cm)

LCD size : 1.54" TFT

Outline Dimension : 31.52 × 33.72 × 1.55 mm

Display area : 27.74 × 27.74 mm

Number of Pixel : 320 × 320

Brightness : 300 cd/㎡

Interface : 3SPI_16BIT_RGB

Viewing Angle : IPS

Operating Temperature : -20°C to 70°C

Storage Temperature : -30°C to 80°C

Application : Industria

Contact Now

Display Size	1.54"TFT
Dimensions	31.5233.72 1.55mm
Display area	27.74*27.74 mm
Number of Pixel	320*320
Brightness	300cd/㎡
Interface	3SPI_ 16BIT_RGB
Viewing Angle	IPS
Operating Temperature	-20-70
Storage Temperature	-30-80

Product Description

The 1.54-inch In-Plane Switching (IPS) Thin-Film-Transistor Liquid-Crystal Display (TFT LCD) panel, equipped with a 320×320 pixel resolution and a 300 nits high-brightness wide-viewing-angle display, demonstrates exceptional adaptability to compact form factors. Characterized by its high-definition and finely detailed visual rendering, robust performance across varying illumination levels, comprehensive 178° viewing angle, and resilience in diverse operational environments, this display technology is well-suited for applications in smart wearable devices, portable analytical instruments, and miniature intelligent control systems.
