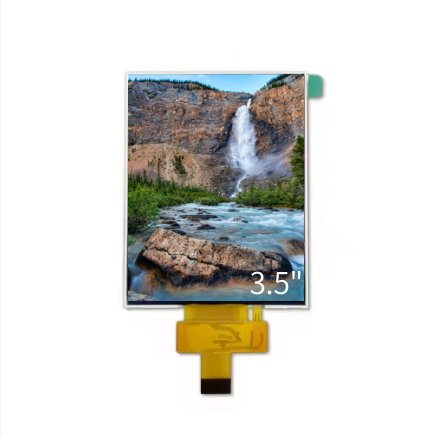

Customized IPS LCD Display 3.5 Inch TFT LCD Display Screen 320x480 Resolution

  • 1
  • 2
  • 3

Model Number : RHY035

Certification : ISO9001

Place of Origin : China

MOQ : 1000

Price : US $ 8.12

Payment Terms : T/T

Delivery Time : 31-35 work days

Packaging Details : 11.2*15.8*6.1(cm)

Product Name : IPS LCD Display

Outline Dimension : 60.75*108.71*10.29 mm

Display area : 48.96*73.44 mm

LCD size : 3.5"

Number of Pixel : 320 * 480 pixels

Brightness : 300 cd/m²

Interface : TTL

Viewing Angle : IPS

Contact Now

Customized 3.5 Inch High-Clarity IPS TFT LCD Module – 320*480 Resolution Display Screen
Key Features
  • Display Type: 3.5" TFT LCD
  • Brightness: 300 cd/m²
  • Interface: TTL
  • Viewing Angle: IPS
Technical Specifications
Display Size 3.5 inch
Dimensions 60.75*108.71*10.29 mm
Active Area 48.96*73.44 mm
Resolution 320 * 480 pixels
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C
Product Benefits
This customized 3.5-inch high-clarity IPS TFT LCD module features a WVGA resolution of 320*480, combining multiple advanced display technologies. With ultra-high pixel density for sharp visuals, it offers a 178° viewing angle (both horizontal and vertical) for consistent image quality from any perspective.
The IPS technology enables accurate color reproduction with an 800:1 contrast ratio and 72% NTSC color gamut coverage, delivering vivid and lifelike colors. The module supports extensive customization options including:
  • Adjustable backlight brightness for various lighting conditions
  • Integration of resistive or capacitive touch panels
  • Interface protocol modifications (SPI, I²C, or parallel)
Ideal for portable medical equipment, industrial control panels, handheld gaming consoles, and IoT devices, this LCD module ensures clear information display while enhancing user experience with superior visual performance.
